TURBINE VENTILATOR – MODEL NO. VT 10

Home / Medical Equipments & Home Health Care Products / TURBINE VENTILATOR – MODEL NO. VT 10

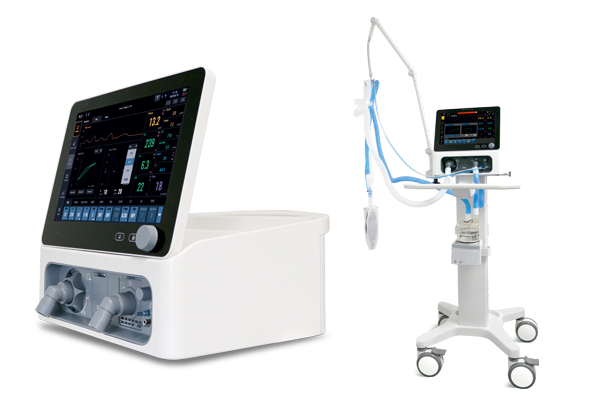

VT 10 Turbine Ventilator

ventilator machine india
ventilator machine
ventilator machine supplier

General Features

  • Turbine based Ventilator with 1” Full Touch Screen Display
  • Wall Gas Independent System
  • Suitable for Invasive as well as Non-Invasive Ventilation
  • Suitable for Adult, Pediatric & Neonatal* Application
  • Comprehensive modes including PRVC, V+SIMV, NIV, etc
  • Upto 35 parameters monitoring
  • 360 Degree Visible alarm indicator
  • Automatic Body Weight Calculation
  • O2 Therapy
  • Extended Battery backup of upto 6 hrs*
  • Durable Expiratory Flow sensor
  • High Sensitive Respiratory Triggers (0.2s)

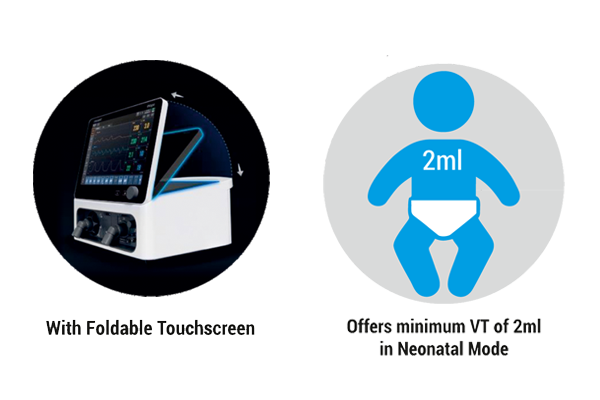

  • Suitable for Transport Ventilator (Foldable Screen & Carry Handle)
  • Neonatal Mode* offers a comprehensive neonatal ventilation with minimum tidal volume of 2ml

*optional (“*” Mark Symbol is for Optional Configuration)

Technical Features

Display

  • Display Size: 12.1” TFT Touch Screen
  • Display Resolution (H) x (V): 1280*800 pixels
  • Brightness: Adjustable

Power & Battery Backup

  • External AC Power Supply Input Voltage and Frequency : 100-240V and 50/60Hz
  • Number of Batteries : One or Two (optional)
  • Battery Type : Build-in-Lithium-ion Battery, 14.4VDC, 6900 mAh
  • Battery Running Time : 3 hours (1 Qty. Battery)
    6 hours (2 Qty. Battery)*
Ventilation Specifications

Invasive Ventilation Mode

  • VCV (Volume Control Ventilation)
  • PCV (Pressure Control Ventilation)
  • VSIMV (Volume Synchronized Intermittent Mandatory Ventilation)
  • PSIMV (Pressure Synchronized Intermittent Mandatory Ventilation)
  • CPAP/PSV (Continuous Positive Airway Pressure/Pressure Support Ventilation)
  • PRVC (Pressure Regulated Volume Control)
  • V+SIMV (PRVC+SIMV)
  • BPAP (Bilevel Positive Airway Pressure)
  • APRV (Airway Pressure Release Ventilation)
  • Apnea Ventilation

Non-Invasive Ventilation Mode :

  • PCV (Pressure Control Ventilation)
  • CPAP/PSV (Continuous Positive Airway Pressure/Pressure  Support Ventilation)
  • BPAP (Bilevel Positive Airway Pressure)
  • APRV (Airway Pressure Release Ventilation)
  • PSIMV (Pressure Synchronized Intermittent Mandatory Ventilation)
Physical Specifications
  • Dimensions (L*W*H): 336mm*330mm*345mm
  • Weight: Approx. 9.9kg (main unit), approx. 29.5kg (with trolley)

Controlled Parameters

Specifications Adult, Pediatric Neonatal*
O2 % 21-100% 21-100%
VT (Tidal Volume)

100-2000mL (Adult)

20-300mL (Pediatric)

2-300mL
f 1-80bpm 1-150bpm
f-SIMV 1-80bpm 1-150bpm
I:E 1:10 – 4:1 1:10 – 4:1
T-insp. 0.2-10s 0.20-10s
T-slope 0-2s 0-2s
T-high 0.2-30s 0.2-3s
T-low 0.2-30s 0.2-30s
T-pause 5%-60%, Off 5%-60%, Off
ΔP-insp. 5-80cmH2O 3-80cmH2O
ΔP-supp. 0-80cmH2O 0-80cmH2O
P-high 0-80cmH2O 0-80cmH2O
P-low 0-45cmH2O 0-25cmH2O
PEEP 1-45cmH2O, Off 1-25cmH2O, Off
Flow Trigger 0.5-15L/min 0.1-5L/min
Pressure Trigger -10-(-0.5)cmH2O /
Exp% 10-85&, Auto 10-85%, Auto

Apnea Ventilation

Specifications
VT-apnea Adult: 100-2000mL
Pediatric: 20-300mL
Neonatal: 2-300mL
∆P-apnea 5-60cmH2O
f-apnea 1-80bpm
Apnea T-insp. 0.2-10s

Sigh

Specifications
Sigh switch On, Off
Interval 20s-180min
Cycles Sigh 1-20
∆ int. PEEP 0-45 cmH2O, Off

Synchronized Tube Resistance Compliance

Specifications
Tube Type ET Tube, Trach. Tube, Disable STRC
Tube I.D. Adult: 5.0-12.0mm
Pediatric: 2.5-8.0mm
Compensate 0-100%
Expiration Compensation Switch On, Off

Monitored Patameters

Numeric
Paw MV-leak FiO2 C-stat.
P-peak MV-spn. f-total RC-exp.
P-plat. Vte I:E WOB
P-mean VTi Re RSBI
PEEP VTe-spn. Ri Cont. flow (O2 Therapy)
MV VTe/IBW C-dyn.

Real-Time Graphics

Pressure-time Waveform Pressure-volume loop
Flow-time Waveform Flow-time loop
Volume-time Waveform Pressure-flow loop

Trend & Record

Specifications
Type Tabular, Graphic
Length 72 Hours
Content Monitored Parameters
Max Log 20000
Screen Capture 500

Synchronized Tube Resistance Compliance

Specifications Type Adult Pediatric Neonatal
Tidal Volume High
Low
110-4000mL, Off
50-4000ml, Off
25-600mL, Off
10-600mL, Off
4-600mL, Off
1-590mL, Off
Minute Volume High
Low
0.2-100.0L/min
0.1-50.0L/min
0.2-60.0L/min
0.1-30.0L/min
0.12-50.0L/min
0.02-30.0L/min
Airway Pressure High
Low
10-60cmH2O
10-63cmH2O, Off
10-60cmH2O
10-63cmH2O, Off
10-60cmH2O
10-63cmH2O, Off
Frequency High
Low
1-90bpm, Off
1-88bpm, Off
1-90bpm, Off
1-88bpm, Off
1-160bpm, Off
1-158bpm, Off
O2 Concentration High
Low
20-100%
18-98%
20-100%
18-98%
20-100%
18-98%
Apnea Alarm Time Low 5-60s 5-60s 5-60s

O2 Therapy

Specifications O2% Flow
Controlled Parameters 21-100% (Increments of 1%) 4-60L/min
Controlled Accuracy ± (3vol.% +1% of setting) ± (2L/min+10% of setting) (BTPS)

Environmental Specifications

Specifications Operating Storage and Transport
Temperature 5-40 ºC -20 – 60 ºC, O2 Sensor: -20 – 50 ºC
Relative Humidity 10-95% 10-95%
Barometric Pressure 62-106kPa 50-106kPa

Gas Supply

Specifications
Gas Supply Medical-grade Oxygen
Pipe Connector NIST or DISS
Gas Supply Pressure 280-600 kPa

Communication Interface

Specifications
Communication Interface HDMI, RS232, USB,  Nurse Call, CO2 Module Connector, Sp O2 Module Connector

Value Added Functions

  • 100% O2
  • Suction
  • Nebulization

Optional

  • Neonatal Mode
  • Extended Battery Backup
  • Supporting Arm for Breathing Circuit
  • Humidifier

Accessories

  • Trolley
  • Supporting Arm for Breathing Circuit
  • Breathing Circuit (Adult/Pediatric, Disposable, Dual Limb)
  • Flow Sensor with Tubing (Adult, Pediatric)
  • Exhalation Valve
  • Bacteria Filter
  • O2 Cell & O2 Hose (NIST/DISS)
  • Lithium Battery
  • Power Cord
  • Test Lung
